XHT
Xarex Heat Trace (up to 85℃ / 185℉)
- Bus wires [Nickel-plated Copper/Tinned Copper]
- Conductive Core[Heating Matrix]
- Inner Jacket[Modified Polyolefin]
- Metallic Braid[Tinned Copper]
- Outer Jacket[CR; Modified Polyolefin CT; Fluoropolymer]
The Xarex XHT Self-Regulating Heating Cable is designed for freeze protection and process temperature maintenance of metal and non-metal pipes and vessels and equipment.
XHT heating cable system is certified for ordinary and hazardous areas with maximum maintain temperature of 150°F (65°C) and intermittent exposure temperature of 185°F (85°C). Use of Xarex connection kits for XHT installation is required to comply with system approval, ensuring safe operation and reliable thermal performance. The CT type outer jacket of this heating cable has high chemical resistance and therefore can be used in the area where organic chemicals or corrosives may be present.
Specification
| Max. Intermittent Exposure Temp. (Heating device energized or de-energized) |
85℃ |
|---|---|
| Max. Maintain or Continuous Exposure Temp. | 65℃ |
| Supply Voltage | 100~120 Vac, 200~277 Vac |
| Output Wattage | 3, 5, 8, 10, 12* W/ft @50°F (10, 16, 26, 33, 39W/m @10℃ on pipe) (* 12W/ft for Supply Voltage 200 – 277VAC only. |
| Bus Wire Gauge | 16AWG |
| Min. Bending Radius | 0.75” (19mm) @5°F (-15°C) , 1.60” (40mm) @-40°F (-40°C) |
| Min. Installation Temperature | -58°F (-50°C) |
| Protection | NEMA 4X, Type4X, IP66 |
| Outer Jacket Color | Black |
| Braid Coverage | Minimum 80% |
| Braid Electrical Resistance | Maximum 0.012Ω/m |

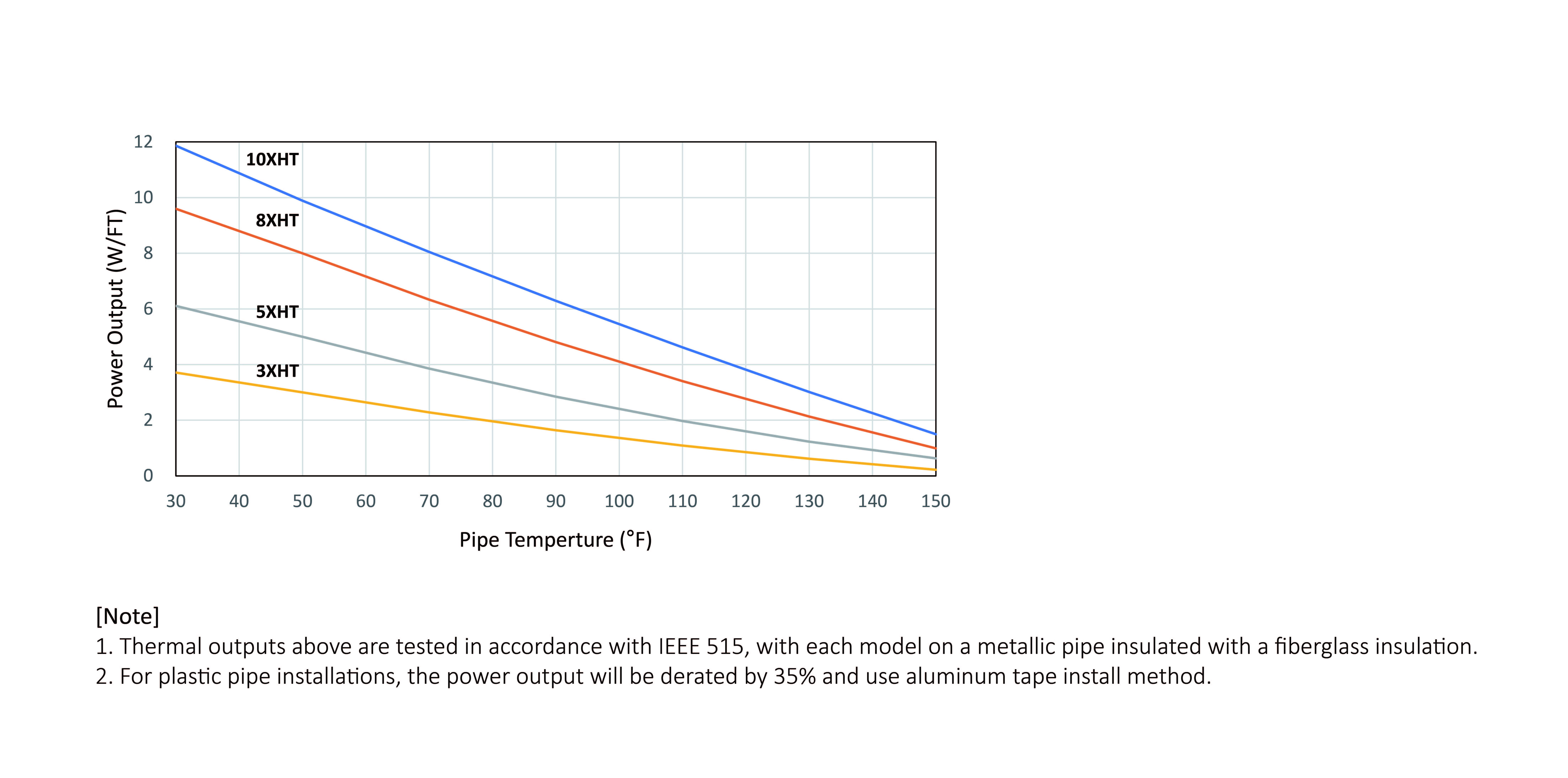

Power output rating

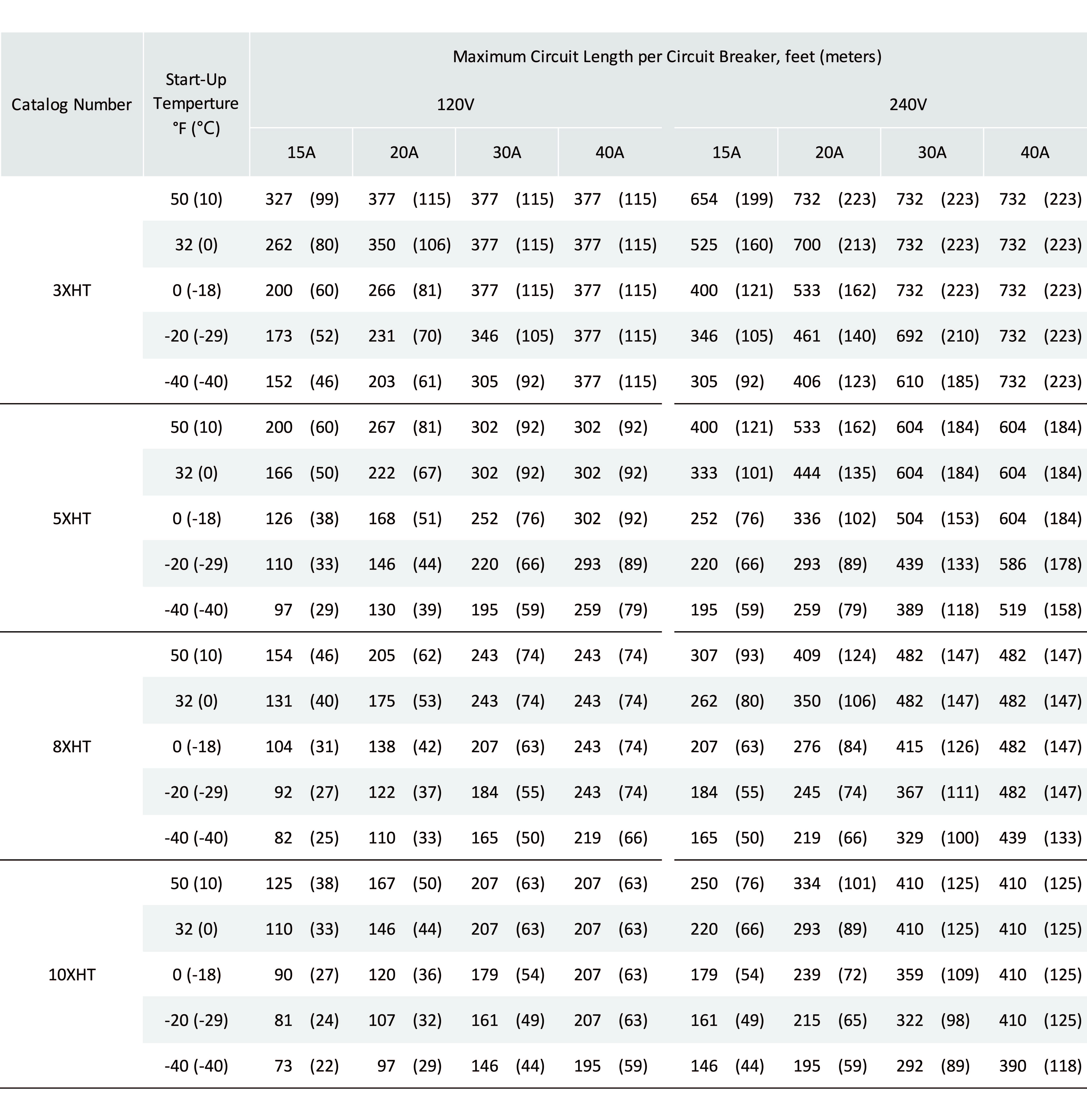

Cable length according to circuit breaker
