XGR
屋顶 & 天沟除冰

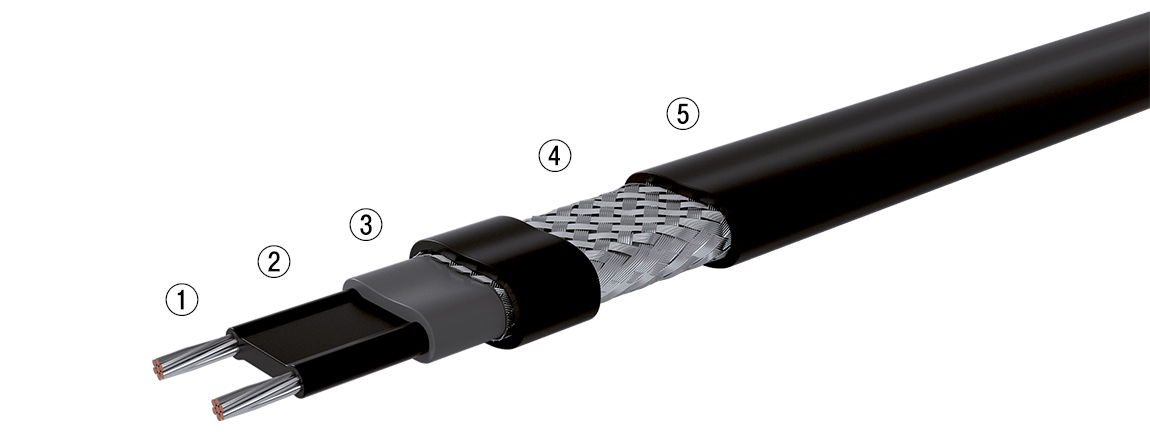

- Bus wires [Nickel-plated Copper/Tinned Copper]
- Conductive Core[Heating Matrix]
- Inner Jacket[Modified Polyolefin]
- Metallic Braid[Tinned Copper]
- Outer Jacket[CR; UV Resistant Modified Polyolefin]
XGR伴热线专为商用/住宅金属和塑料管道加热应用而设计，不适用于任何管道内部，或者水以外的其他液体，且不可用于危险区域。预装配产品供商用和住宅使用。
Specification
| Max. Intermittent Exposure Temp. (Heating device energized or de-energized) |
100℃(212℉) |
|---|---|
| Max. Maintain or Continuous Exposure Temp. | 85℃(185℉) |
| Supply Voltage | 120 VAC / 208~277 Vac |
| Output Wattage | 30, 40W/m(@0℃ in ice water) 9, 13W/m(@32℉ in ice water) |
| Bus Wire Gauge | 16AWG |
| Min. Bending Radius | 40mm(@-40℃) 1.57in.(@-40℉) |
| Min. Installation Temperature | -40℃ -40℉ |
| Protection | NEMA 4X, Type4X, IP66 |
| Outer Jacket Color | Black |
| Braid Coverage | Minimum 80% |
| Braid Electrical Resistance | Maximum 0.012Ω/m |
